Patioslife Haven | 10' x 12' Grey Hardtop Pergola Gazebo, Aluminium Outdoor Structure with Double Vented Roof & Side Curtains
Patioslife Haven | 10' x 12' Grey Hardtop Pergola Gazebo, Aluminium Outdoor Structure with Double Vented Roof & Side Curtains - 10' x 12' / Graphite Grey is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Free Shipping | Local Warehouse
Free Shipping | Local Warehouse
All orders are shipped from our Canadian warehouse with free delivery. We work with trusted major carriers such as FedEx, UPS, Purolator, and Canada Post to ensure fast, accurate, and secure delivery. Every order is carefully processed and checked to help make sure it arrives complete and in excellent condition.
Spare Parts & Canada Base Support
Spare Parts & Canada Base Support
We stand behind our products with long-term after-sales support. To help extend the lifespan of your umbrella, we maintain stock of essential replacement parts, including replacement canopy fabric, solar panels, base covers, replacement ribs, top pole connectors, and pole end cap assemblies.
These serviceable components allow specific parts to be replaced when needed, without replacing the entire umbrella. For safety and structural integrity, full frame structures are not available as individual replacement parts.
Our dedicated after-sales support team is always here to help, whether you need guidance identifying the right component or assistance with the replacement process, so you can keep your umbrella performing season after season.-Warranty Policy
100% Secure & Flexible Checkout
100% Secure & Flexible Checkout
Shop with confidence ā your payment is encrypted and protected-Payment Method
Security you can trust
Every transaction is encrypted at checkout. We do not store your full card details.
Payment Methods
Credit/Debit Cards:Ā Visa, Mastercard, American Express, Discover, JCB,
Express Checkout:Ā Apple Pay, Google Pay
Flexible Payments:Ā Afterpay, Klarna
Enjoy full protection and flexibility ā your data stays safe, and your shopping stays smooth.
45-Day Risk-Free Return Policy
45-Day Risk-Free Return Policy
Changed your mind? No worries. Return your order within 45 days for a full refund.
Patioslife Haven | 10' x 12' Grey Hardtop Pergola Gazebo, A...
Specs & Assemble
Specifications
- Material: Aluminum, Steel, Polyester & Netting
- Post dimensions: 4.7x4.7in posts and 0.06in thick steel
- Roof Material: Galvanized Steel | CP-84 flame retardant material
- Curtain:350GSM Yarn-Dyed Polyester | Wind Block + Privacy
- Netting:300GSM Textilene Mesh | Bug Protection + Sun Shade
- Shape: Rectangular
- Wind Rate: 60+ mph / 97+ km/h
- Water Resistance Level: Water Resistant
- Ultraviolet Light Protection: UV Protection
- Assembly Required: Yes
- Estimated Lifespan: 10 years
Note: Every package comes with a detailed step-by-step manual and the necessary tools, so you don’t need to buy anything extra.
Installation Guide
Instruction Manuals:
Installation Requirements:
- Recommended 2–3 people for assembly.
- Ladder and gloves are advised for safety.
- Secure the gazebo with anchoring brackets immediately after assembly.
Installation Services:
- For assistance, professional installation services can be arranged through third-party providers.
- Our team recommends reputable local installers for safe and efficient setup.
Disclaimer:
- Installation services are provided by third-party professionals and are not managed directly by us.
Product Specs & Packaging
| Product Description | 300 x 300 cm (10' x 10') | 300 x 365 cm (10' x 12') | 300 x 430 cm (10' x 14') | 365 x 480 cm (12' x 16') | 365 x 610 cm (12' x 20') | 365 x 550 cm (12' x 18') | 245 x 245 cm (8' x 8') | 365 x 365 cm (12' x 12') | 245 x 300 cm (8' x 10') | 365 x 430 cm (12' x 14') |
|---|---|---|---|---|---|---|---|---|---|---|
| Outer Dimensions Between Posts | 274 x 274 cm | 273 x 338 cm | 273 x 398 cm | 338 x 458 cm | 388 x 568 cm | 338 x 520 cm | 213 x 213 cm | 338 x 338 cm | 213 x 274 cm | 338 x 398 cm |
| Clear Distance Between Posts | 250 x 250 cm | 249 x 314 cm | 249 x 374 cm | 314 x 434 cm | (2 x 2.66 m) x 3.14 m | (2 x 2.42 m) x 3.14 m | 189 x 189 cm | 314 x 314 cm | 189 x 250 cm | 314 x 374 cm |
| Roof Dimensions | 300 x 300 cm | 300 x 365 cm | 300 x 430 cm | 365 x 480 cm | 365 x 610 cm | 365 x 550 cm | 245 x 245 cm | 365 x 365 cm | 245 x 300 cm | 365 x 430 cm |
| Total Height | 287 cm (9.4 ft) | 289 cm (9.5 ft) | 289 cm (9.5 ft) | 305 cm (10 ft) | 305 cm (10 ft) | 302 cm (9.9 ft) | 272 cm (8.9 ft) | 302 cm (9.9 ft) | 272 cm (8.9 ft) | 305 cm (10 ft) |
| Number of Posts | 4 | 4 | 4 | 4 | 6 | 6 | 4 | 4 | 4 | 4 |
| Carton Dimensions L x W x H (cm) | 215 x 32 x 23, 196 x 32 x 22, 142 x 60 x 7 |
215 x 33 x 28, 180 x 36 x 26, 142 x 60 x 7 |
215 x 33 x 28, 215 x 33 x 28, 205 x 32 x 22, 205 x 32 x 22, 142 x 60 x 7 |
215 x 32 x 23, 215 x 32 x 23, 226.5 x 32 x 29, 226.5 x 32 x 29, 160 x 60 x 7, 160 x 60 x 7 |
215 x 32 x 23, 215 x 32 x 23, 226.5 x 32 x 29, 226.5 x 32 x 29, 160 x 60 x 7, 160 x 60 x 7, 160 x 60 x 7 |
215 x 32 x 23, 215 x 32 x 23, 226.5 x 32 x 29, 226.5 x 32 x 29, 160 x 60 x 7, 160 x 60 x 7, 160 x 60 x 7 |
215 x 32 x 23, 196 x 32 x 22, 142 x 60 x 7 |
215 x 33 x 28, 205 x 32 x 22, 205 x 32 x 22, 142 x 60 x 7 |
215 x 32 x 23, 196 x 32 x 22, 142 x 60 x 7 |
215 x 32 x 23, 215 x 32 x 23, 226.5 x 32 x 29, 226.5 x 32 x 29, 160 x 60 x 7, 160 x 60 x 7 |
| Gross Weight (kg) | 32, 25, 39 | 42, 31, 46 | 42, 42, 34, 34, 49 | 30, 32, 48, 48, 40, 40 | 30, 30, 48, 48, 40, 40, 40 | 28, 28, 46, 46, 39, 39, 39 | 32, 25, 39 | 42, 34, 34, 49 | 36, 25, 42 | 28, 28, 46, 46, 39 |
| Number of Cartons | 3 Cartons | 3 Cartons | 5 Cartons | 6 Cartons | 7 Cartons | 7 Cartons | 3 Cartons | 4 Cartons | 3 Cartons | 6 Cartons |
Patioslife in Real Life
Step into the world of Patioslife and see how customers across Canada and beyond have transformed their outdoor spaces with our umbrellas, gazebos, and pergolas. From stunning BC patios to cozy Ontario backyard retreats, these real stories showcase the beauty, quality, and comfort that define Patioslife — built to shine through every Canadian season.
Payment & Security
Every Reason to Stay Outside
-
Outdoor Dining & BBQ
Fire Up the BBQ, Whatever the Weather
-
Relaxing / Outdoor Living Room
Nowhere Else You'd Rather Be
-
Family & Friends Entertaining
The Backyard Everyone Shows Up To
-
Day to Night Living
Sunset Doesn't Mean It's Over
Designed for What Backyard Actually Throws At It
Sun, salt, wind, rain and insects don't take turns ā a backyard gazebo has to survive all of it, every season, for years.
Coastal air corrodes untreated frames ā rust can set into joints and hardware within a few seasons.
A sudden gust can lift, bend, or tear a lightweight frame before you've even noticed the weather turning.
Without real airflow, the space underneath gets too hot to sit in ā right when you need the shade most.
Water pools on a flat or poorly drained roof and finds its way through.
Mosquitoes and flies turn an open evening outdoors into something you'd rather do inside.
Accumulated snow adds immense weight to a roof. Our heavy-duty frame and reinforced posts are built to carry that load, so the structure stays solid through winter instead of buckling under it.
Salt Air
Strong Wind
Intense Heat
Heavy Rain
Insects
Heavy Snow
A Frame Built to Carry the Load
95%+ Aluminium ā Strong without the extra weight, and won't rust out from coastal salt air like cheaper steel frames.
Powder-Coated Finish ā An extra layer of defence against harsh Aussie sun, rain and salt spray, season after season.

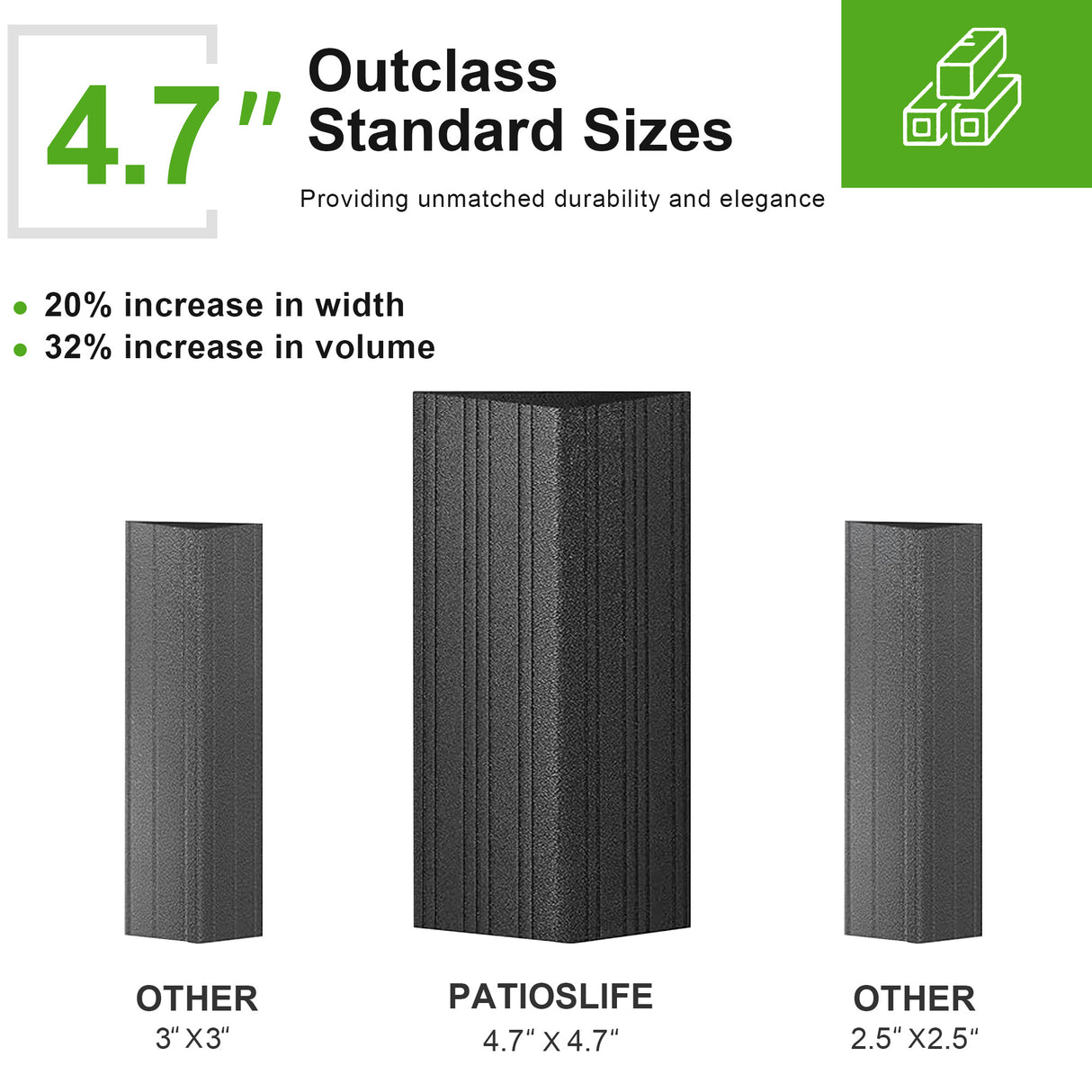

4.7 Ć 4.7 in Structural Posts ā Solid enough to hold their shape under load ā no flexing or wobbling at the joints.
Rounded, Smooth Edges ā Every edge finished safe to lean on, brush past, or have the kids run around ā not just sturdy to look at.

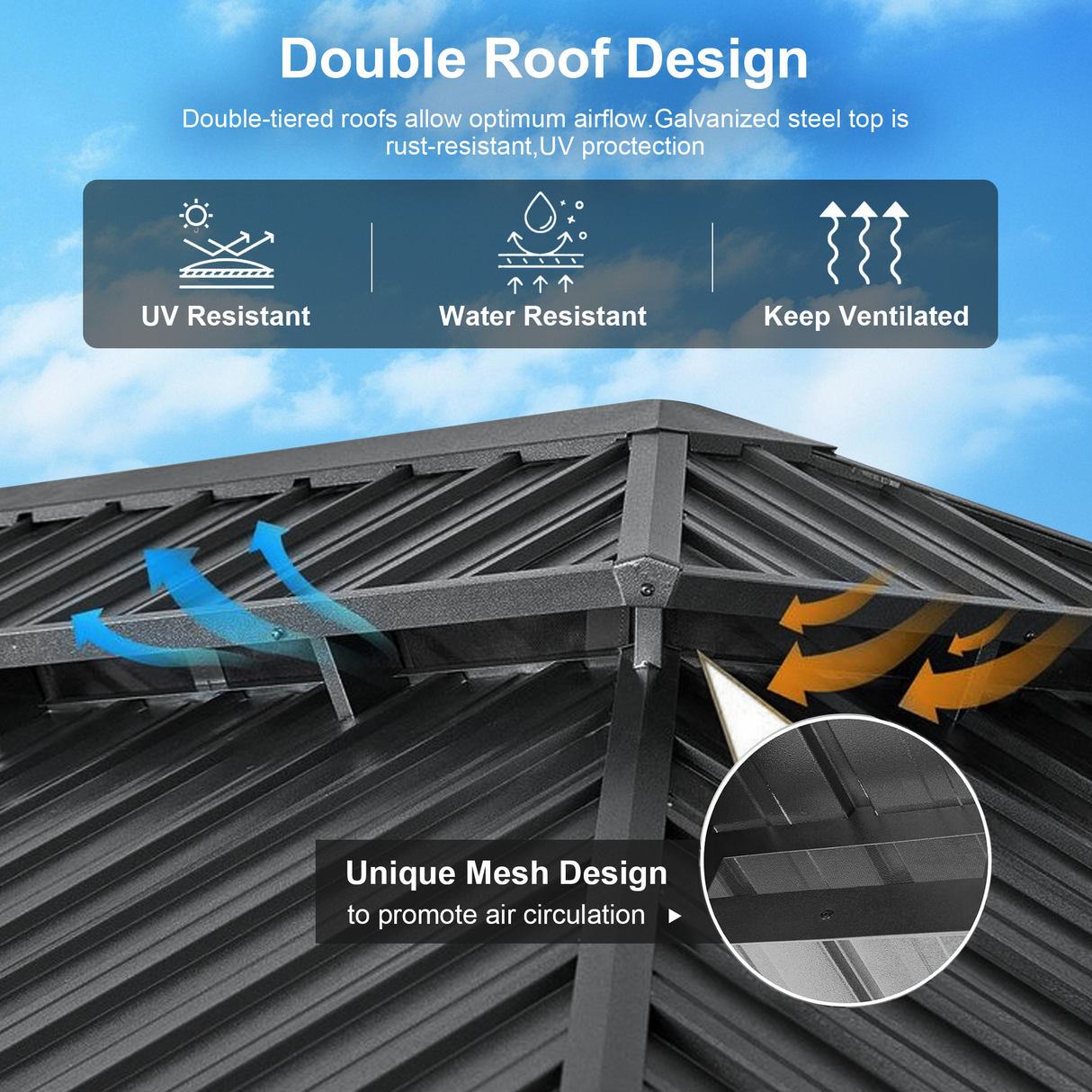

A Roof That Actually Keeps You Outside
A single flat roof traps heat directly overhead ā you feel it the moment you sit down. This one doesn't: galvanised steel blocks 99% of UV before it reaches you, and the double-layer construction creates a gap that lets hot air rise and vent out instead of settling underneath. Between the two layers sits a mesh screen, so the same roof keeping the sun off also keeps mosquitoes from finding their way in ā one less thing hanging below the frame.

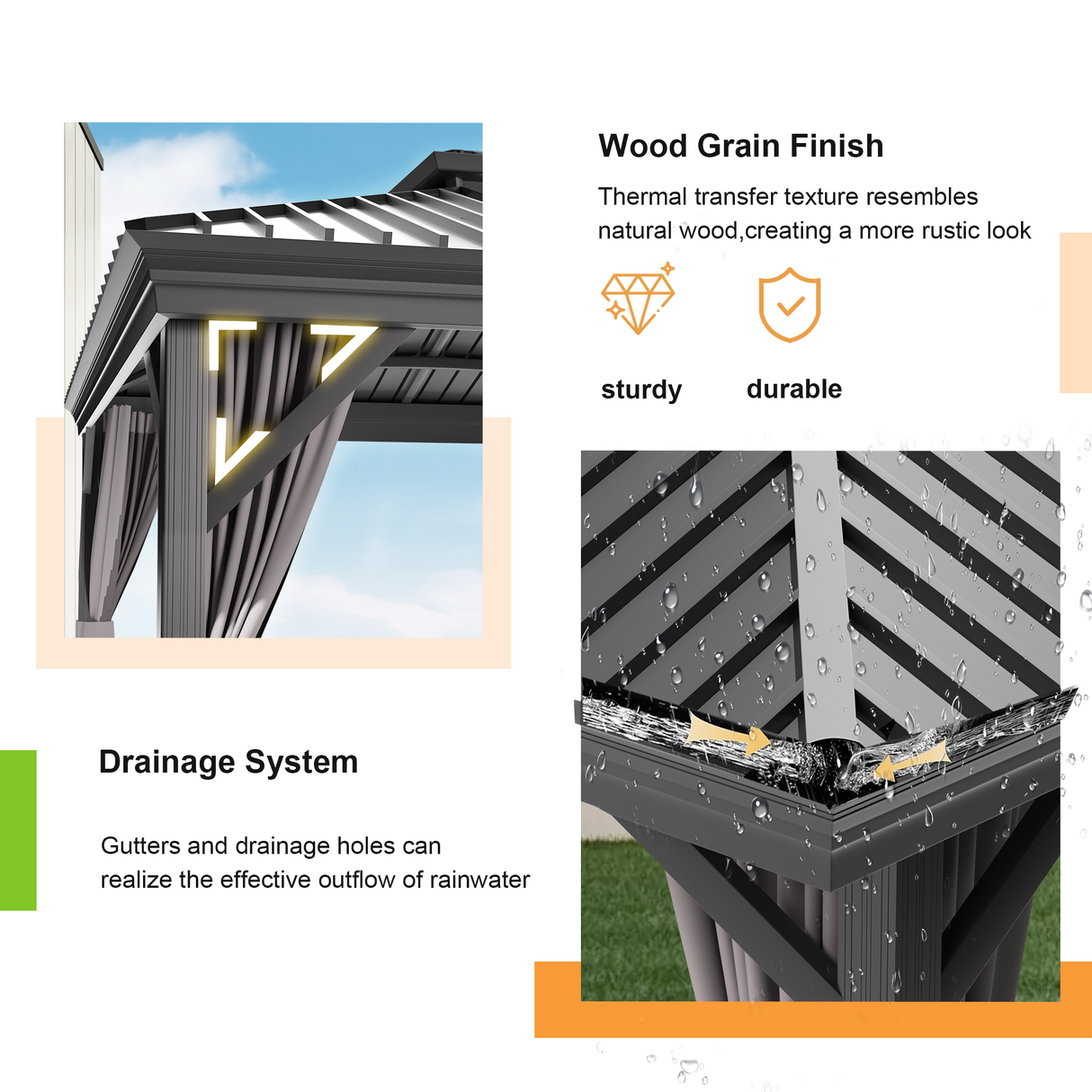

Where Every Drop Goes, By Design
Picture a downpour with no drainage plan: water sheets off the roof edge in one long curtain ā onto the furniture, onto you. This roof doesn't let it get that far. Guttering runs the full perimeter of the eaves, catching runoff the second it leaves the roof, then routes it straight down through channels hidden inside the posts and out at the base. No downpipes bolted to the frame, no puddle forming exactly where you'd rather be sitting. You just see clean lines ā and dry ground.
Never Get Caught Under a Waterfall Again
Most gazebos let rain pour straight off the roof edges, leaving a curtain of water right where you walk in, and soaking your patio furniture. Ours has a built-in gutter system that channels runoff down through the hidden corner posts, so the entrance stays dry, the ground stays mud-free, and your furniture stays protected.

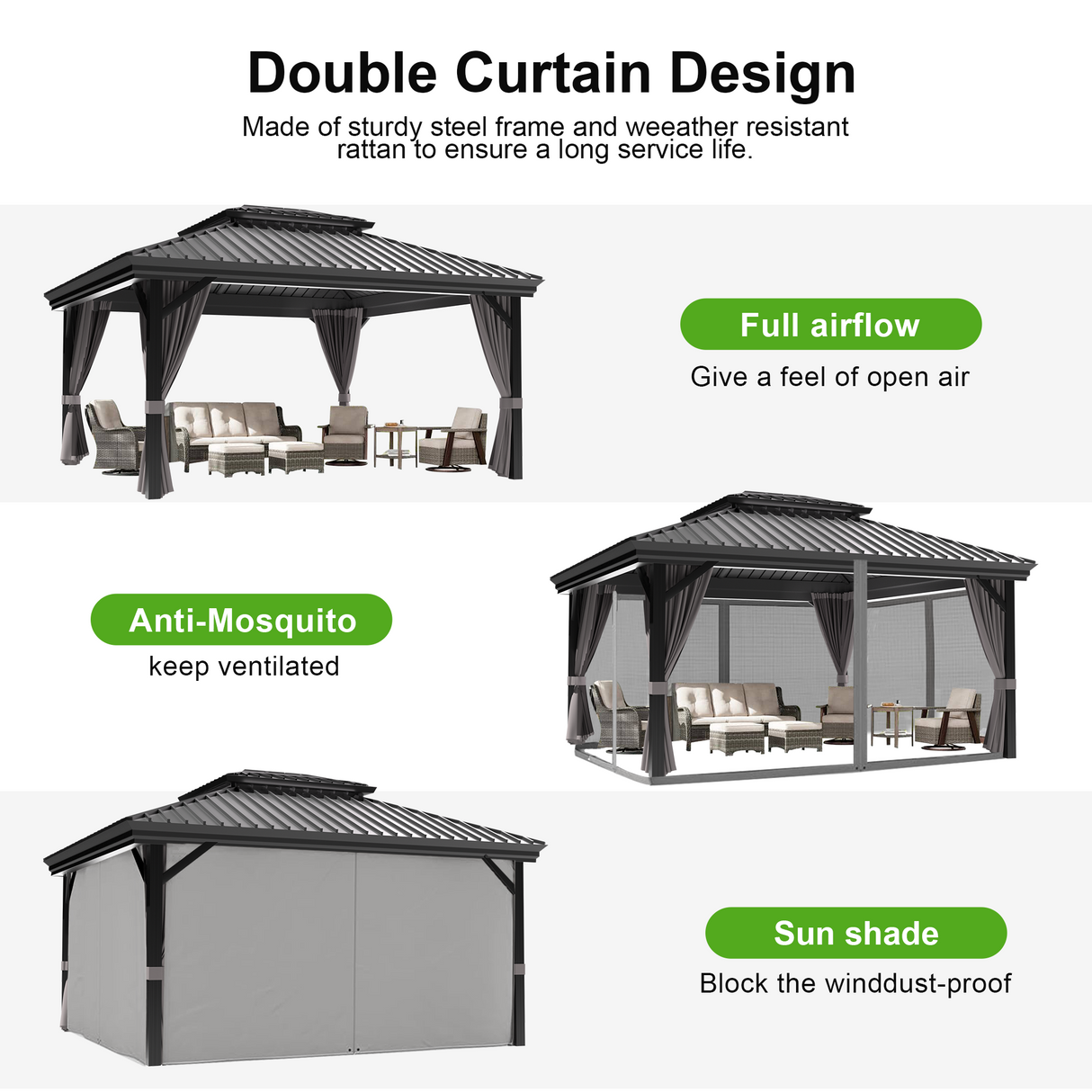

Built for However You Actually Use Your Backyard

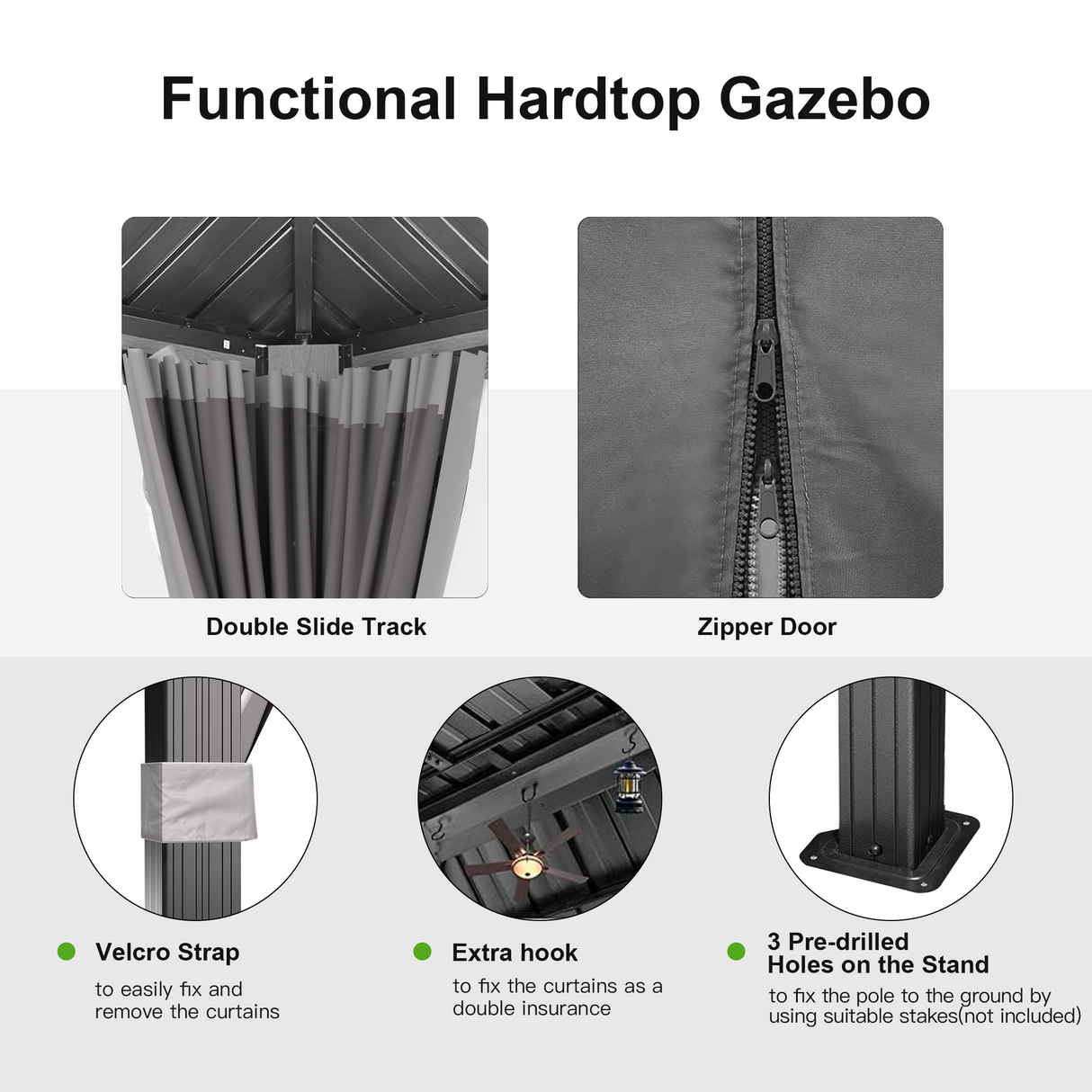

Summer evening doesn't sit still for long ā sun's out, then it's not, then the mozzies show up right as everyone sits down for dinner. This gazebo moves with it. Slide across the 300gsm mesh layer and keep the bugs out without losing the breeze, or drop the heavier 350gsm curtain when the wind picks up or you just want a bit of privacy from the neighbours. Both layers run on a built-in track, so switching between them takes seconds ā not a wrestle with zips and poppers.
Built for the Kind of Wind That Actually Shows Up
Somewhere between āshould be fineā and ādefinitely fineā is where most gazebos live. Ours doesnāt. Itās independently certified to withstand winds of 55+ mph (Beaufort Force 10), backed by a reinforced aluminum frame and 4.7 Ć 4.7 inch structural posts engineered to hold their ground, not just look the part in a product photo. Whether itās a sudden gust or a storm front rolling through, this oneās been tested for it, not just hoped for.
See It In Detail
Explore the thoughtful design, durable materials and smart features behind our gazebo.
What Makes This Gazebo Stronger
